Platforms
Koios
Strategic ISR with a tactical footprint

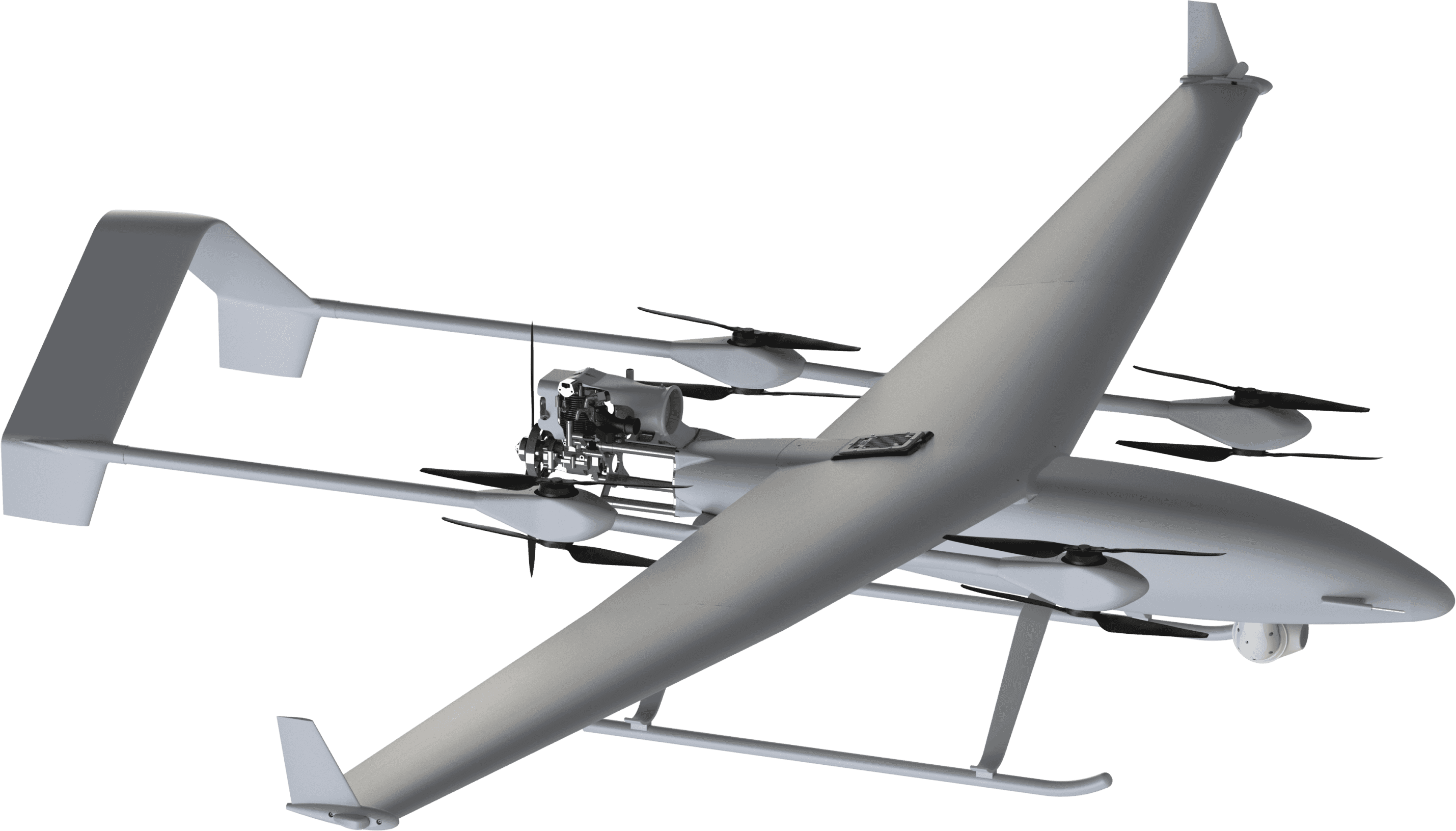

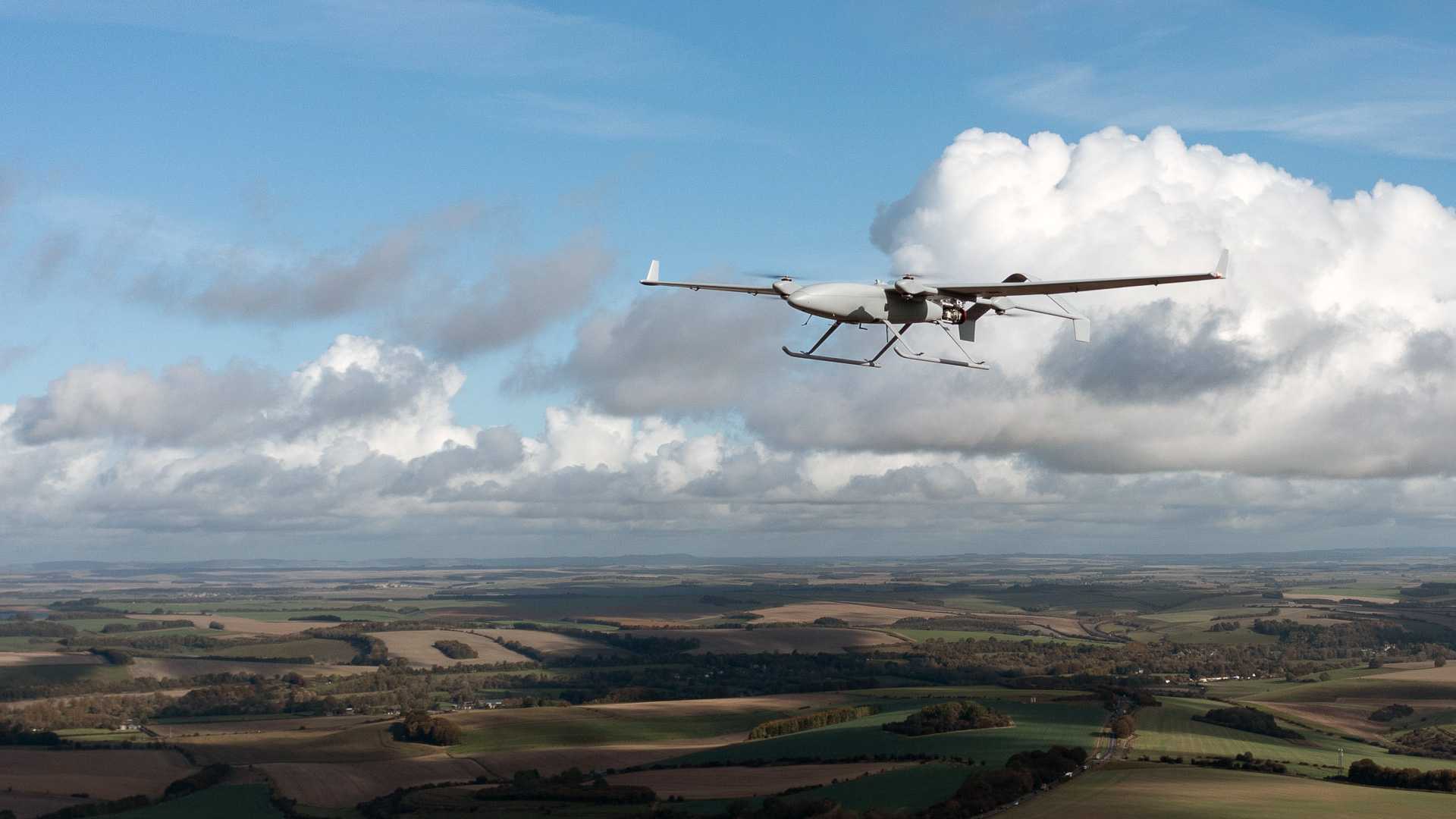

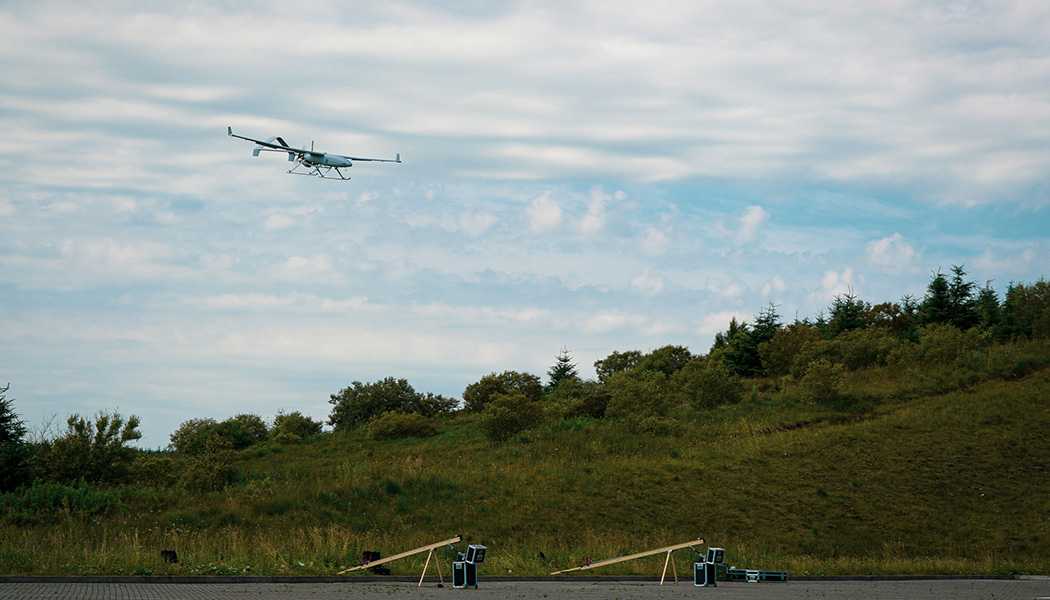

Koios is our medium-sized, S2 Class, Vertical Take-Off and Landing (VTOL) platform, offering strategic ISR capabilities with a tactical footprint. Designed and manufactured in-house by Callen-Lenz, Koios is payload agnostic and is operationally proven in both civil and defence markets worldwide.
Key capabilities
Alternator
Alternator powers aircraft systems.
Removable wings and tail
When disassembled Koios can be transported in two packing boxes. When unpacked Koios can be pre-flight checked and launched in under 10 minutes.

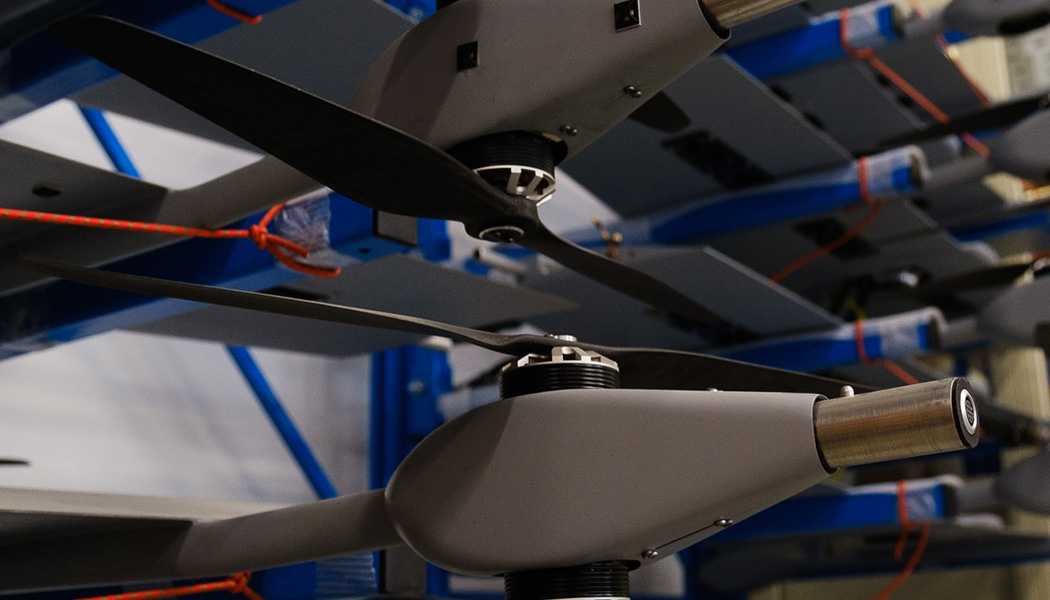

Electric brushless motors
Provides vertical lift.
SC3
Mission Management System.
Multi-Fuel Engine
35cc 4 stroke capable of running on a wide range of fuels including Jet A1 and gasoline.
Wet Wing
Internal fuel tanks maximise free space in fuselage for additional components.
Payload agnostic
Koios can be supplied with a standard EO/IR turret or integrated with customer specified payloads.
Fregata
High endurance, long range ISR platform.

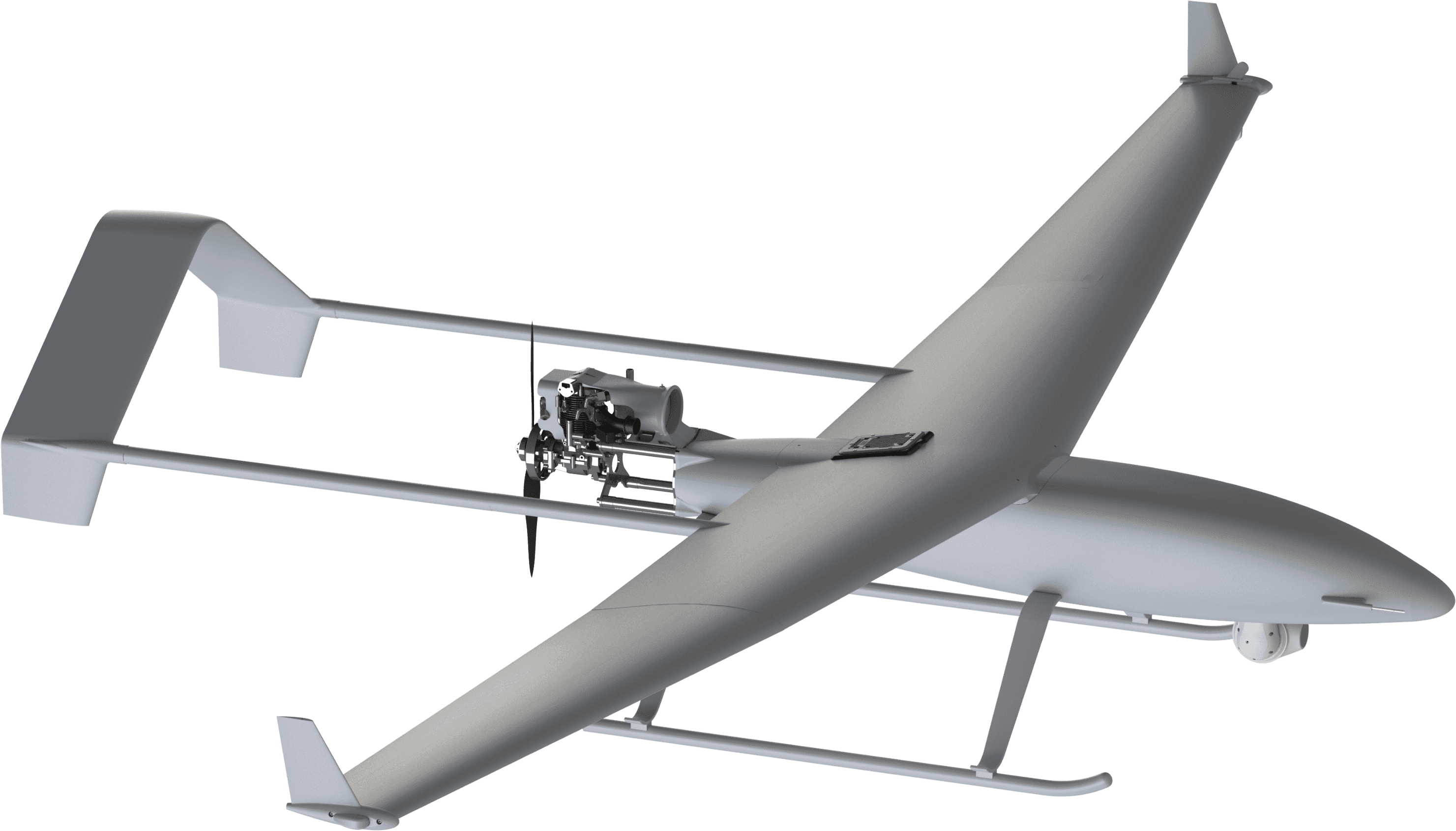

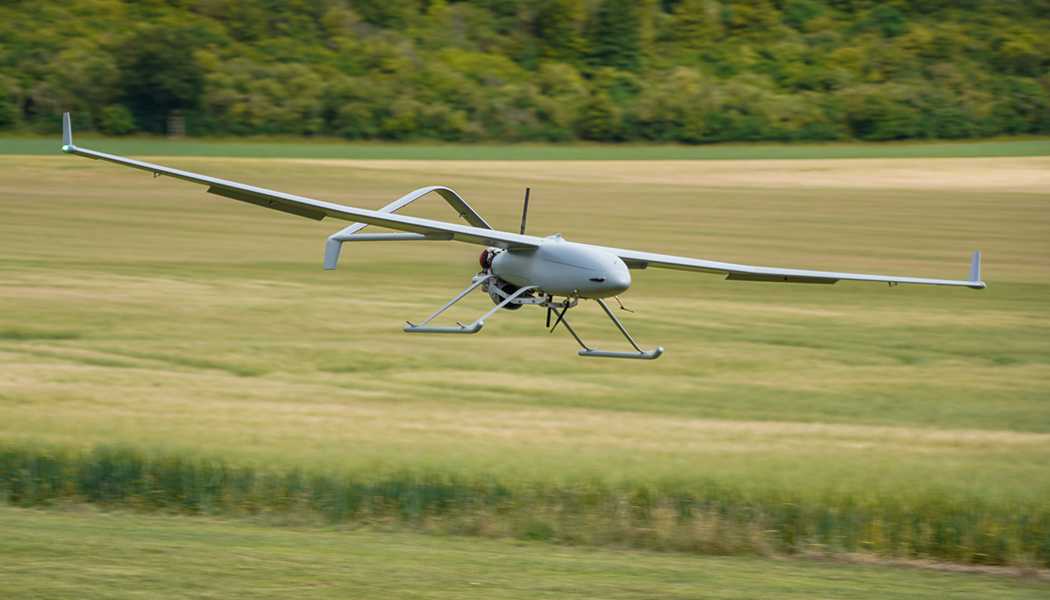

Fregata is a medium sized, S2 class, high endurance Conventional Take-Off and Landing (CTOL) ISR platform with an enhanced payload capacity. While Fregata requires more space to land than Koios it utilises lightweight skids that make short landings achievable on almost any surface. Like Koios, Fregata has been designed from the ground up in house by Callen-Lenz and has been tailored to suit long range missions where flight endurance is a priority.
Key capabilities
SC3
Mission Management System
Enhanced payload capacity
Fregata can carry a greater variety of payloads making it suited to an array of mission profiles.
Wet Wing
Internal fuel tanks maximise free space in fuselage for additional components.
Removable wings and tail
When disassembled Fregata can be transported in two packing boxes. When unpacked Fregata can be pre-flight checked and launched in under 10 minutes.
Lightweight skids
Allow for conventional landing on almost any unprepared surface.
Alternator
Alternator powers aircraft systems.
Multi-Fuel Engine
35cc 4 stroke capable of running on a wide range of fuels including Jet A1 and gasoline.
| Koios | Fregata | |
|---|---|---|
| Take-Off and Landing | VTOL | Vehicle-top / Pneumatic Catapult |
| MTOW | 35 kg | 35 kg |
| Payload + Fuel | 7 kg | 12 kg |
| Endurance* | 6-8 hours | 8-12 hours |
| Cruise Speed | 50 kts | 50 kts |
| Wingspan | 4 m | 4 m |
*Depending on fuel load and mission profile
Prometheus
Reconfigurable UAS capable of autonomous subterranean mapping

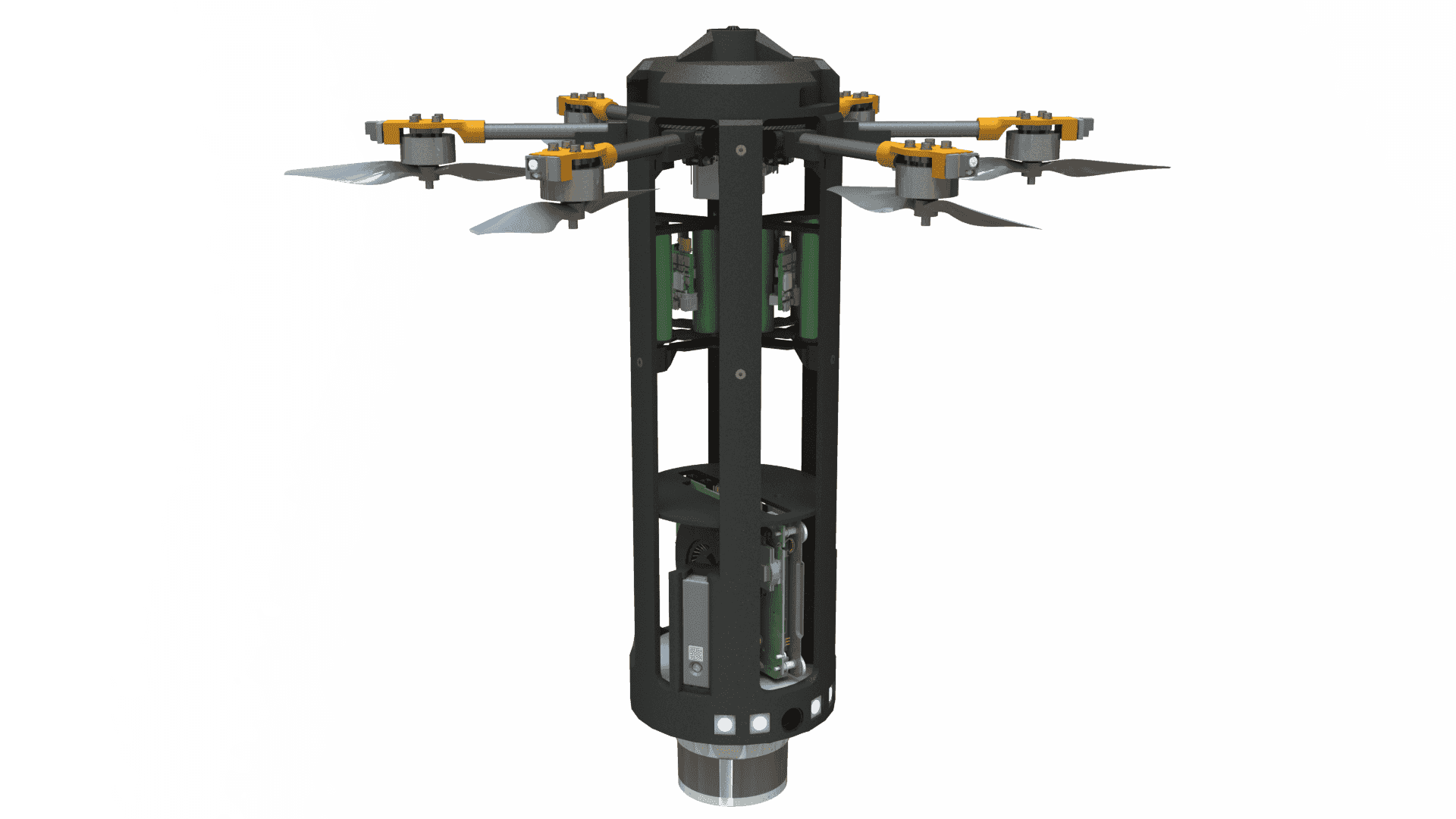

Prometheus is a reconfigurable UAS, capable of mapping and autonomously navigating GNSS denied subterranean environments.

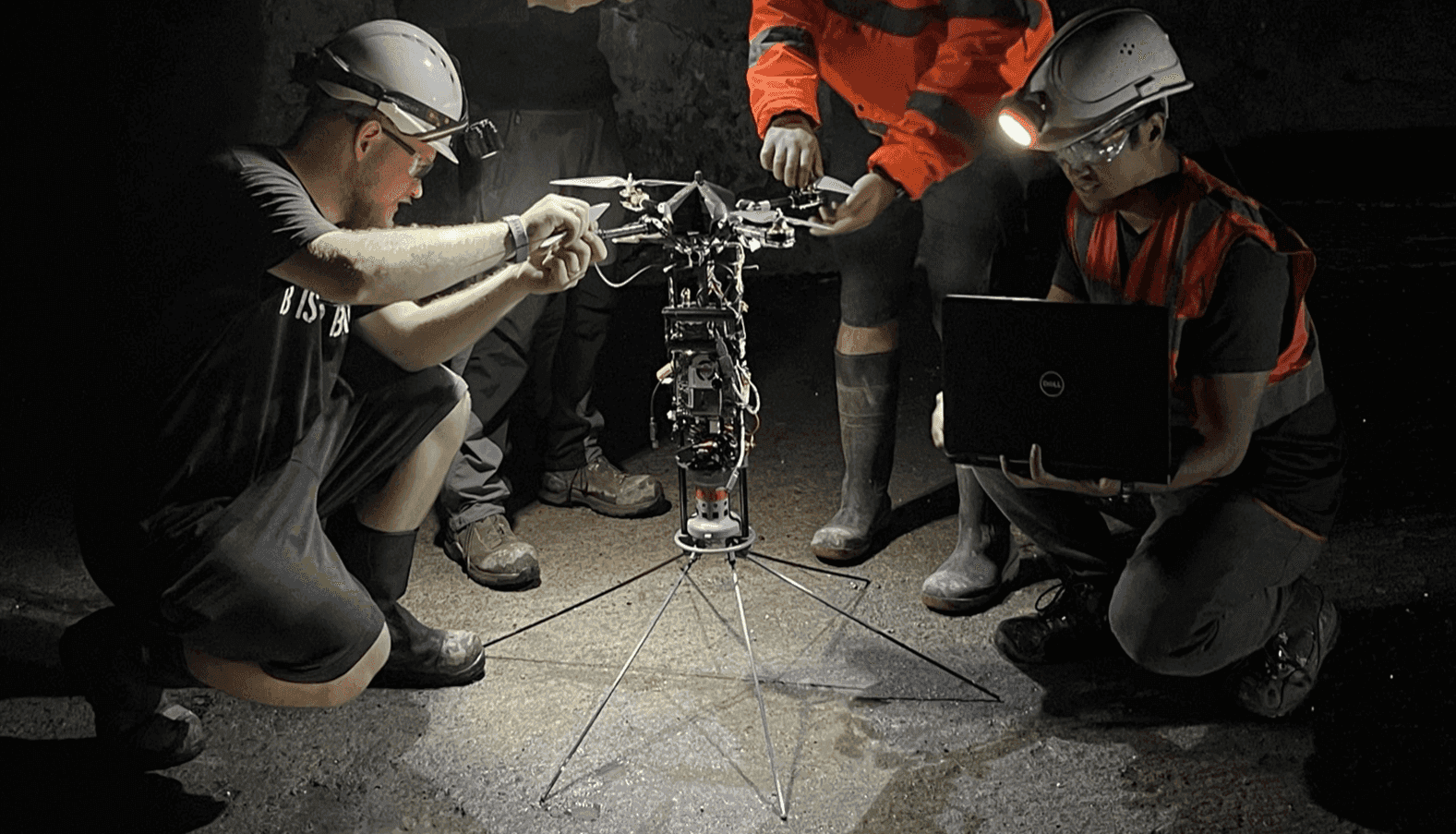

Prometheus navigates to areas Beyond Visual Line of Sight (BVLOS) collecting data to build a map of underground mines and voids while collecting visual imagery to inform decisions regarding their condition. Prometheus can be deployed via a borehole into voids not accessible by people.
Produced in collaboration with Network Rail & Headlight AI.
Key capabilities
Autonomous deployment and docking.
Custom design battery pack.
Deployable and recoverable through 145mm diameter borehole.
Capable of operating in wet environments.
Onboard autonomous path planning and navigation.
HD RGB Camera.
360° LiDAR and further LiDAR sensors.

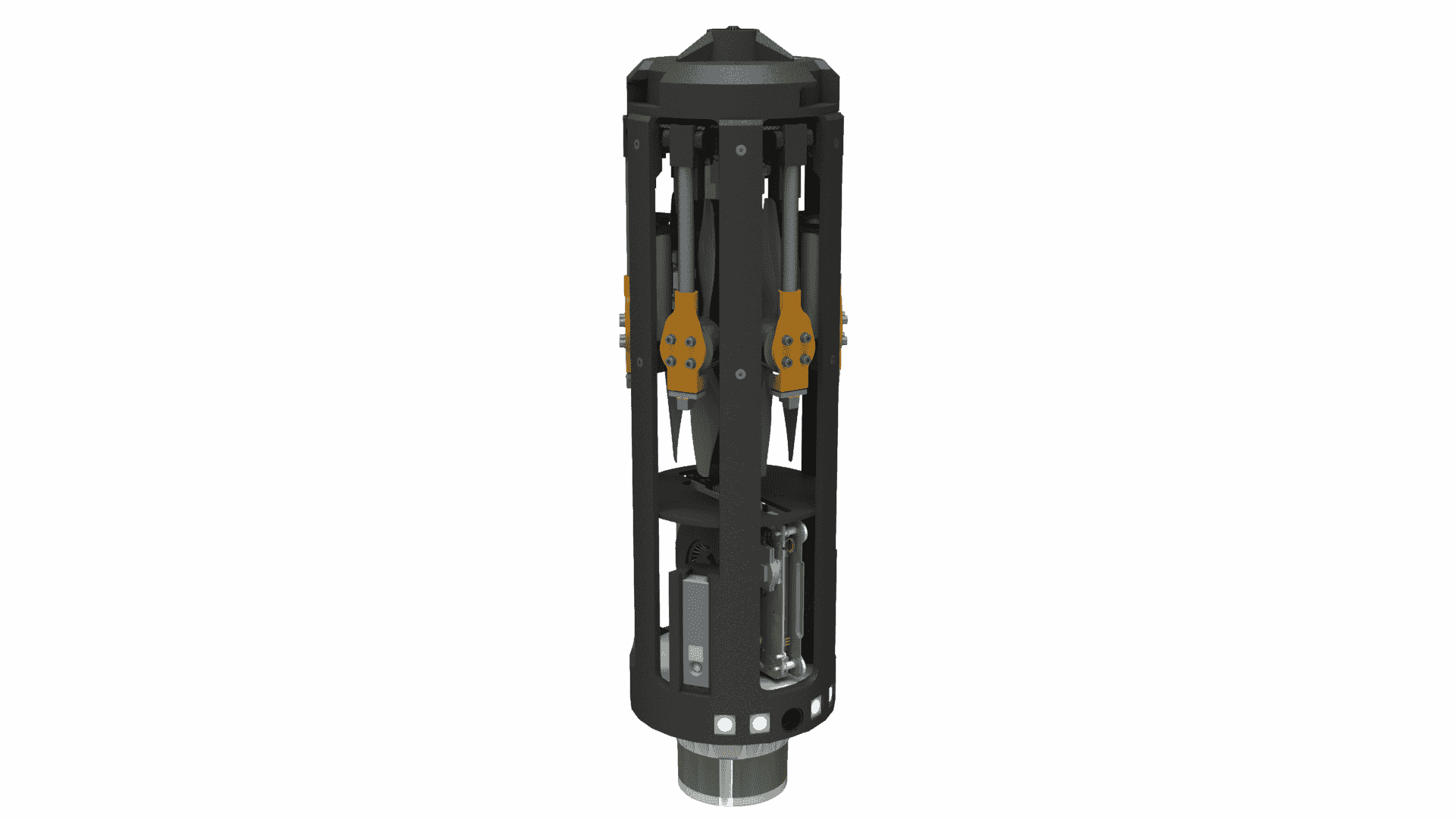

Arms are capable of folding.
| Prometheus | |
|---|---|
| Mass | 3 kg |
| Take-Off and Landing | From deployment mechanism or freestanding |
| Endurance | Max 12 minutes |
| Drone Configuration | Hexacopter |
| Flight Speed | 0.5m/s (whilst mapping) |
Operational Applications

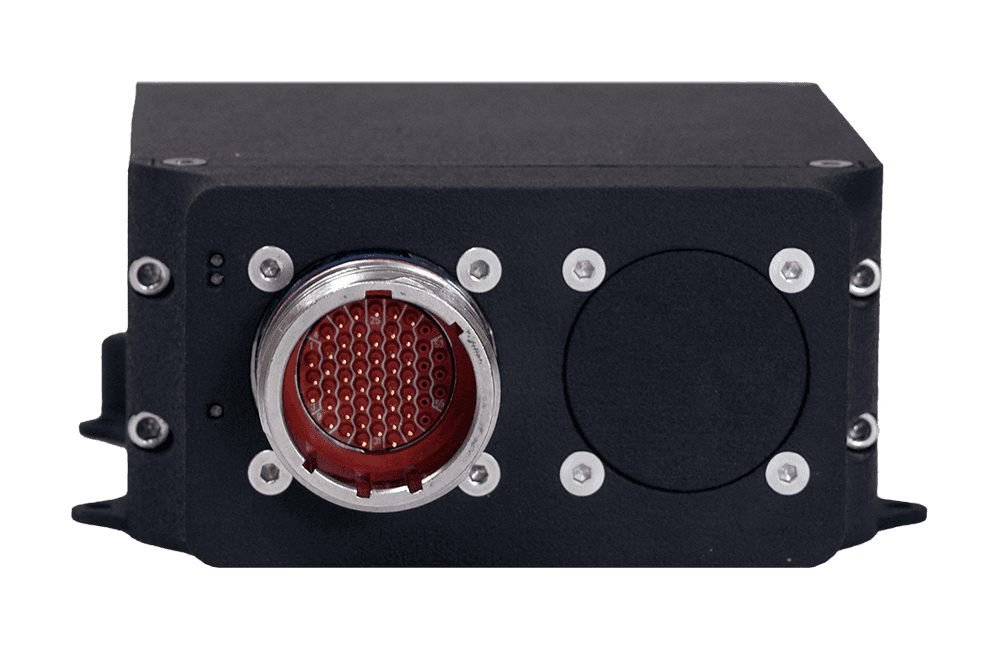

Sky Circuits Mission Management System.
SC3, our mission management system, enables our aircraft to execute missions autonomously with minimal pilot workload. Missions can be pre-programmed using a point-and-click user interface.
